Automatic Swing Gate Price in Bangladesh

Automatic Gate Price

Coeval Technology is a Leading Automation Company in Bangladesh. Automatic gate is a part of Home Automation. We are supplier & Importer of Good quality automatic gate motor both sliding and swing. We supply Automatic Gate in a cheap price range in all over the Bangladesh.

Types of Automatic Swing Gate & Motor :

There are few types automatic swing gate motor but we only recommend and supply the best quality, high longevity and Low maintenance motors.

A. Hydraulic Liner Motor:

Jack system swing gate motor

Choice for uneven floor.

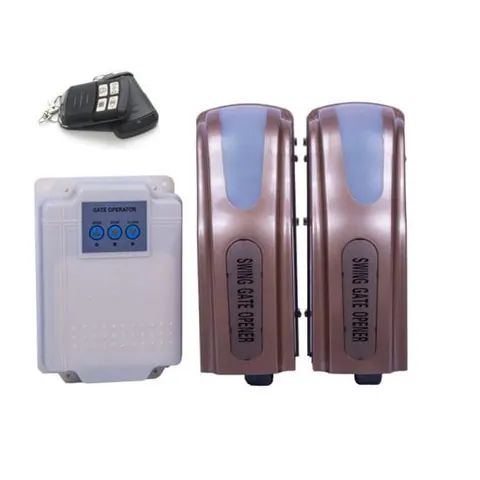

B. Roller Motor :

roller swing gate motor

Roller motor best suited for level floor.

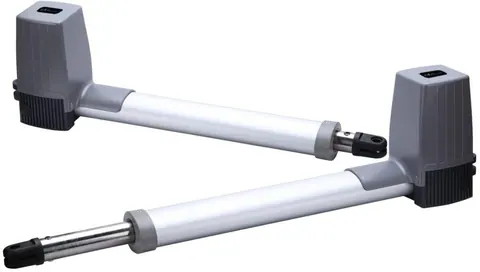

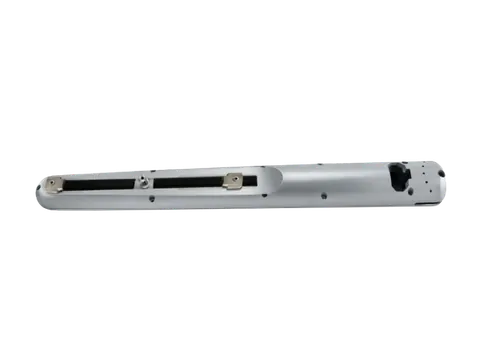

C. Liner Motor :

Best choice for uneven/unlevel floor

Technical Specification of Automatic Swing Gate :

ModelSG600
Power Supply220V/50Hz;110V/60HZ
Motor Power550W
Gate Moving Speed11-13M/Min
Maximum Weight of Gate1500Kg
Motor Voltage 24VDC
Remote Control ModeSingle Button Mode / Three Button Mode
Limit SwitchSpring Limit Switch / Magnetic Limit Switch
Noise<60dB
Working DutyS2, 20 Min
Recording of Remote Controls25
Frequency433.92 MHz
Working Temperature-20 Degree to 70 Degree Celsius

Product Features:

  • Coeval automatic sliding gate opener is a heavy-duty and much stronger automatic gate opener, it is designed for gates up to 2000Kg
  • The opener has a controller, receiver, and emergency key release.
  • It’s power supply is 220V with a power rating of 550 W.
  • This slide gate opener is an installer-friendly automatic gate opener that provides long-lasting, trouble-free performance.
  • Long service life, High security, convenient installation & almost no maintenance.
  • Can be operated by Solar power.
  • Automatically stop against extra resistances.
  •  Large opening angle >180 degree.
  •  To enhance safety and convenience, there is an manual opening design so you will still be able to close the door in case of power failure.
Dual Folding Swing Gate Automation using Liner Motor

We can customize the best Automatic Gate for our customers according to their requirements with best Price .
